Kotlin Vulkan Triangle using GLFW for Windows - Single file

Submitted by Dickens A S on Tue, 11/19/2019 - 12:46

Kotlin Vulkan Triangle using below github code

Important Note:

  1. Code is not optimized for performance, all the optimization codes were removed to make this single file smaller
  2. The code is a single file to encourage beginners to kick start and self learn and modify the file
  3. This code is not recommended for production, please use classes and structured coding and best practices recommended in vulkan api guidelines
  4. The code as it is will only work in windows, to make it work it in other OS the code needs to be modified, refer the references in the github

GitHubhttps://github.com/dickensas/kotlin-gradle-templates/tree/master/vulkan-triangle-glfw

MSYS2 https://www.msys2.org/

This is required for windows to download pre-compiled libraries and its headers

pacman -S mingw-w64-x86_64-vulkan-loader mingw-w64-i686-vulkan-loader mingw-w64-i686-vulkan-headers mingw-w64-x86_64-vulkan-headers mingw-w64-x86_64-glfw mingw-w64-i686-glfw

Note: libvulkan-1.dll, glfw3.dll and shaders folder should be copied to the exe folder to make the windows app work

Code Stages Code Length in lines
GLFW instance 42
Vulkan instance 162
Surface 20
Physical Device 51
Logical Device 152
Semaphores 50
Graphics Command Pool 13
Vertex and Index Buffer 169
Uniform Buffer 55
Swap Chain 245
Render Pass 75
Image Views 31
Depth Stencil 75
Frame Buffers 35
Graphics Pipeline 230
Description Pool 29
Descriptor Set 32
Command Buffers 140
Drawing Loop 71
Clean Up 100

Total lines of code in average will be around 2000+ for a basic shape,

But, once the base code is optimized , then only the shapes needs to be loaded into the pipeline which makes the vulkan API very much customizable.

For validation callback you need to download Vulkan SDK https://www.lunarg.com/vulkan-sdk/ but the code will refer to MSYS2 vulkan headers only

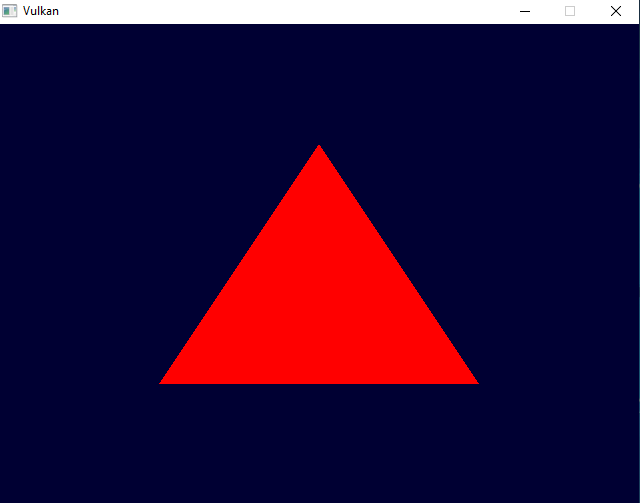

640x480 - Output from the windows exe

Vulkan Triangle

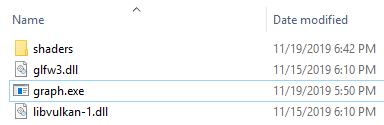

Windows EXE folder contents example

Output Folder

Kotlin Code Reduced as mush to make it simple

package plot

import platform.posix.*
import platform.windows.GetModuleHandle
import kotlinx.cinterop.*
import kotlin.native.concurrent.DetachedObjectGraph
import kotlin.native.concurrent.attach

import vulkan.*
import glfw.*

fun loadShader(fileName:String, vk_ldevice:VkDevice) = memScoped {
    fun fail(): Nothing = throw Error("Cannot read input file $fileName")

    val size = alloc<stat>().also { if (stat(fileName, it.ptr) != 0) fail() }.st_size
    val file = platform.posix.fopen(fileName, "rb") ?: fail()
    val buf = ByteArray(size.toInt()).also {
        try {
            fread(it.refTo(0), 1, size.convert(), file)
        } finally {
            fclose(file)
        }
    }

    val shaderModule = alloc<VkShaderModuleVar>()
    buf.usePinned {
        var createInfo = alloc<VkShaderModuleCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_SHADER_MODULE_CREATE_INFO
            pNext = null
            codeSize = size.toULong()
            @Suppress("UNCHECKED_CAST")
            pCode = it.addressOf(0) as CPointer<uint32_tVar>
            flags = 0u
        }
        if(vkCreateShaderModule(vk_ldevice, createInfo.ptr, null, shaderModule.ptr)!=VK_SUCCESS)
            throw Error("Failed to load shader vertex shader")
    }
    shaderModule.value
}

fun ver(a: UInt, b: UInt, c: UInt): UInt = ((a shl 22) or (b shl 12) or c)
fun ma(version: UInt): UInt = (version shr 22)
fun mi(version: UInt): UInt = ((version shr 12) and (0x3ff).toUInt())
fun pa(version: UInt): UInt = (version and (0xfff).toUInt())

fun findMemIndex(lbits:UInt, memoryProperties:VkPhysicalDeviceMemoryProperties, properties:VkMemoryPropertyFlags):UInt {
    var memIndex = 0u
    var bits = lbits
    for (i in 0u until memoryProperties.memoryTypeCount) {
        if ((bits and 1u) == 1u) {
            if ((memoryProperties.memoryTypes[i.toInt()].propertyFlags and properties) == properties) {
                memIndex = i
                break
            }
        }
        bits = bits shr (1)
    }
    return memIndex
}

fun createBufferAndMemory(
    scope:MemScope,
    ibuffer:VkBufferVar,
    imemory:VkDeviceMemoryVar,
    vk_ldevice:VkDevice,
    vk_pdevice:VkPhysicalDevice,
    isize:ULong,
    obuffer: VkBufferVar,
    omemory: VkDeviceMemoryVar,
    buffer: Any,
    bitUsage: VkBufferUsageFlagBits
    ) {
    with(scope) {

        val vertexBufferInfo = alloc<VkBufferCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO
            size = isize
            usage = VK_BUFFER_USAGE_TRANSFER_SRC_BIT
        }

        if (
                vkCreateBuffer(
                    vk_ldevice,
                    vertexBufferInfo.ptr,
                    null,
                    ibuffer.ptr
                )
            != VK_SUCCESS
        )
        throw RuntimeException("Failed to create buffer")

        val memReqs: VkMemoryRequirements = alloc()
        vkGetBufferMemoryRequirements(vk_ldevice, ibuffer.value, memReqs.ptr)

        val memoryAllocateInfo = alloc<VkMemoryAllocateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO
            allocationSize = memReqs.size
        }

        var memoryProperties: VkPhysicalDeviceMemoryProperties = alloc()
        vkGetPhysicalDeviceMemoryProperties(vk_pdevice, memoryProperties.ptr)

        memoryAllocateInfo.memoryTypeIndex = findMemIndex(
            memReqs.memoryTypeBits,
            memoryProperties,
            VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT or VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
        )

        val mapped = alloc<COpaquePointerVar>()

        if (
                vkAllocateMemory(
                    vk_ldevice,
                    memoryAllocateInfo.ptr,
                    null,
                    imemory.ptr
                )
            != VK_SUCCESS
        )
        throw RuntimeException("Faild allocate memory")

        if (
                vkMapMemory(
                    vk_ldevice,
                    imemory.value,
                    0u,
                    memoryAllocateInfo.allocationSize,
                    0u,
                    mapped.ptr
                )
            !=VK_SUCCESS
        )
        throw RuntimeException("Faild map memory")

        if(buffer is FloatArray) {
            buffer.usePinned { buf ->
                platform.posix.memcpy(mapped.value, buf.addressOf(0), isize)
            }
        }else if(buffer is UIntArray) {
            buffer.usePinned { buf ->
                platform.posix.memcpy(mapped.value, buf.addressOf(0), isize)
            }
        }

        vkUnmapMemory(vk_ldevice, imemory.value)

        if (
                vkBindBufferMemory(
                    vk_ldevice,
                    ibuffer.value,
                    imemory.value,
                    0u
                )
            != VK_SUCCESS
        )
        throw RuntimeException("failed bind memory")

        vertexBufferInfo.usage = bitUsage

        if (vkCreateBuffer(vk_ldevice, vertexBufferInfo.ptr, null, obuffer.ptr)!=VK_SUCCESS)
            throw RuntimeException("Failed to create buffer")
        vkGetBufferMemoryRequirements(vk_ldevice, obuffer.value, memReqs.ptr)

        memoryAllocateInfo.allocationSize = memReqs.size
        memoryAllocateInfo.memoryTypeIndex = findMemIndex(
            memReqs.memoryTypeBits,
            memoryProperties,
            VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
        )

        if (vkAllocateMemory(vk_ldevice, memoryAllocateInfo.ptr, null, omemory.ptr)!= VK_SUCCESS)
            throw RuntimeException("Faild allocate memory")

        if (vkBindBufferMemory(vk_ldevice, obuffer.value, omemory.value, 0u)!= VK_SUCCESS)
            throw RuntimeException("failed bind memory")

    }
}

val modes: ArrayList<VkPresentModeKHR> = ArrayList()
var presentetionMode: VkPresentModeKHR = VK_PRESENT_MODE_FIFO_KHR
var colorSpace: VkColorSpaceKHR = UInt.MAX_VALUE
var swapChainFormat: VkFormat = UInt.MAX_VALUE

fun main() = memScoped {

    //#1 create GLFW instance
    if (glfwInit() == GLFW_FALSE) {
        throw Error("Failed to initialize GLFW")
    }

    glfwWindowHint(GLFW_CLIENT_API, GLFW_NO_API)
    glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE)

    val window = glfwCreateWindow(640, 480, "Vulkan", null, null) ?:
    throw Error("Failed to open GLFW window. If you have an Intel GPU, they are not 3.3 compatible. Try the 2.1 version of the tutorials.")

    glfwMakeContextCurrent(window)

    val extensions: MutableList<String> = ArrayList()

        memScoped {
            var count = alloc<UIntVar>()
            var ext = glfwGetRequiredInstanceExtensions(count.ptr);
            extensions.addAll(Array(count.value.toInt()) { ext!![it]!!.toKString() })
        }

         memScoped {
            val extensionsCount = alloc<UIntVar>()
            extensionsCount.value = 0u
            var result: VkResult
            do {
                result = vkEnumerateInstanceExtensionProperties(null, extensionsCount.ptr, null)
                if ( result != VK_SUCCESS ) throw RuntimeException("Could not enumerate instance extensions.")

                if (extensionsCount.value == 0u) break

                val buffer = allocArray<VkExtensionProperties>(extensionsCount.value.toInt())
                result = vkEnumerateInstanceExtensionProperties(null, extensionsCount.ptr, buffer)

                for (i in 0 until extensionsCount.value.toInt()) {
                    val ext = buffer[i].extensionName.toKString()
                    if (!extensions.contains(ext))
                        extensions.add(ext)
                }
            } while (result == VK_INCOMPLETE)
        }

        println(extensions)

        val debugSupported = extensions.contains("VK_EXT_debug_report")

        val availableLayers = mutableListOf<String>()
        var callback = alloc<VkDebugReportCallbackEXTVar>()

        //#2 create Vulcan instance and debug callback

        val vk_instance = memScoped {
            val acInfo = alloc<VkInstanceCreateInfo>().apply {
                sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO
                pNext = null
                pApplicationInfo = null
                enabledLayerCount = 0U
                ppEnabledLayerNames = null
                enabledExtensionCount = extensions.size.toUInt()
                ppEnabledExtensionNames = extensions.toCStringArray(memScope)
            }

            if(debugSupported) {
                val layers = arrayOf(
                    "VK_LAYER_GOOGLE_threading",
                    "VK_LAYER_LUNARG_parameter_validation",
                    "VK_LAYER_LUNARG_object_tracker",
                    "VK_LAYER_LUNARG_core_validation",
                    "VK_LAYER_GOOGLE_unique_objects",
                    "VK_LAYER_LUNARG_standard_validation"
                )
                val layersCount = alloc<UIntVar>()

                var result1: VkResult

                run failure@{
                    do {
                        result1 = vkEnumerateInstanceLayerProperties(layersCount.ptr, null)
                        if (result1 != VK_SUCCESS) {
                            println("Failed to enumerate debug layers")
                            availableLayers.clear()
                            return@failure // failed to get layers break the loop

                        } else {

                            val buffer = allocArray<VkLayerProperties>(layersCount.value.toInt())

                            result1 = vkEnumerateInstanceLayerProperties(layersCount.ptr, buffer)
                            if (result1 !=VK_SUCCESS) {
                                println("Filed to enumerate Debug Layers to buffer")
                                availableLayers.clear()
                                return@failure // failed to get layers break the loop

                            }

                            for (i in 0 until layersCount.value.toInt()) {
                                val layer = buffer[i].layerName.toKString()
                                println("Found $layer layer")
                                if (!availableLayers.contains(layer) && layers.contains(layer)) {
                                    availableLayers.add(layer)
                                    println("$layer added")
                                }
                            }
                        }
                    } while (result1 == VK_INCOMPLETE)
                }

                if (availableLayers.size > 0) {
                    if (availableLayers.contains("VK_LAYER_LUNARG_standard_validation"))
                        availableLayers.removeAll {
                            it != "VK_LAYER_LUNARG_standard_validation"
                    }
                    else {
                        availableLayers.sortBy {
                            layers.indexOf(it)
                        }
                    }
                    println("Setting up Layers:")
                    availableLayers.forEach {
                        println(it)
                    }

                    acInfo.enabledLayerCount = availableLayers.size.toUInt()
                    acInfo.ppEnabledLayerNames = availableLayers.toCStringArray(memScope)

                }
            }

            val output = alloc<VkInstanceVar>()
            var result = vkCreateInstance(acInfo.ptr, null, output.ptr)
            if(result!=VK_SUCCESS)
                throw Error("Error initializing Vulkan")

            if(debugSupported && availableLayers.size > 0) {
                val dbgCreateInfo = alloc<VkDebugReportCallbackCreateInfoEXT>().apply {

                    sType = VK_STRUCTURE_TYPE_DEBUG_REPORT_CALLBACK_CREATE_INFO_EXT.toUInt()
                    flags = VK_DEBUG_REPORT_INFORMATION_BIT_EXT or VK_DEBUG_REPORT_WARNING_BIT_EXT or
                            VK_DEBUG_REPORT_PERFORMANCE_WARNING_BIT_EXT or VK_DEBUG_REPORT_ERROR_BIT_EXT or
                            VK_DEBUG_REPORT_DEBUG_BIT_EXT

                    pfnCallback = staticCFunction { flags, _, _, _, msgCode, pLayerPrefix, pMsg, _ ->

                        var prefix = "kvarc-"

                        when {

                            flags and VK_DEBUG_REPORT_ERROR_BIT_EXT > 0u -> prefix += "ERROR:"
                            flags and VK_DEBUG_REPORT_WARNING_BIT_EXT > 0u -> prefix += "WARNING:"
                            flags and VK_DEBUG_REPORT_PERFORMANCE_WARNING_BIT_EXT > 0u -> prefix += "PERFORMANCE:"
                            flags and VK_DEBUG_REPORT_INFORMATION_BIT_EXT > 0u -> prefix += "INFO:"
                            flags and VK_DEBUG_REPORT_DEBUG_BIT_EXT > 0u -> prefix += "DEBUG:"

                        }

                        val debugMessage =
                            "$prefix [${pLayerPrefix?.toKString() ?: ""}] Code $msgCode:${pMsg?.toKString() ?: ""}"

                        if (flags and VK_DEBUG_REPORT_ERROR_BIT_EXT > 0.toUInt()) {
                            println(debugMessage)
                        } else {
                            println(debugMessage)
                        }

                        VK_FALSE.toUInt()
                    }

                }

                println("Creating debug callback")
                var kvkCreateDebugReportCallbackEXT: PFN_vkCreateDebugReportCallbackEXT? = null

                vkGetInstanceProcAddr(output.value, "vkCreateDebugReportCallbackEXT")?.let { voidFun ->

                    @Suppress("UNCHECKED_CAST")
                    kvkCreateDebugReportCallbackEXT = voidFun as PFN_vkCreateDebugReportCallbackEXT

                }

                kvkCreateDebugReportCallbackEXT?.let {
                    if (
                            it(
                                output.value,
                                dbgCreateInfo.ptr,
                                null,
                                callback.ptr
                            )
                            !=VK_SUCCESS
                    ) {
                        println("Add layers callback failed.")
                    }
                } ?: kotlin.run {
                    println("Add layers callback failed.")
                }
            }

            output.value
        }

        println("Vulkan successfully initialized")

        if (
            !extensions.contains("VK_KHR_surface") ||
            !extensions.contains("VK_KHR_win32_surface")
        )
        throw RuntimeException("Needed extensions not supported")

        //#3 create Vulcan surface

        val vk_surface = memScoped {
            var output = alloc<VkSurfaceKHRVar>()
            val createInfo = alloc<VkWin32SurfaceCreateInfoKHR> {
                sType = VK_STRUCTURE_TYPE_WIN32_SURFACE_CREATE_INFO_KHR
                pNext = null
                flags = 0u
                hinstance = GetModuleHandle!!(null)
                hwnd = glfwGetWin32Window(window)
            }
            var result = vkCreateWin32SurfaceKHR(vk_instance, createInfo.ptr, null, output.ptr)

            if(result != VK_SUCCESS)
                throw RuntimeException("Failed to create vk surface")

            output.value
        }

        println("Vulkan surface initialized")

        //#4 create Vulcan physical surface

        val vk_pdevice = memScoped {
            var result = VK_INCOMPLETE
            val gpuCount = alloc<UIntVar>()
            var output = alloc<VkPhysicalDeviceVar>()
            var buffer: CArrayPointer<VkPhysicalDeviceVar>? = null

            while (result == VK_INCOMPLETE) {

                result = vkEnumeratePhysicalDevices(vk_instance, gpuCount.ptr, null)
                if(result != VK_SUCCESS){
                    throw Error("Could not enumerate GPUs.")
                }

                buffer?.let {
                    nativeHeap.free(it)
                    buffer = null
                }

                buffer = nativeHeap.allocArray(gpuCount.value.toInt())

                result = vkEnumeratePhysicalDevices(vk_instance, gpuCount.ptr, buffer)
                if (result != VK_INCOMPLETE && result != VK_SUCCESS)
                    throw Error("Could not enumerate GPUs.")

            }
            output.value = buffer!![0]

            for (i in 0 until gpuCount.value.toInt()) {

                val props1 = alloc<VkPhysicalDeviceProperties>()
                vkGetPhysicalDeviceProperties(buffer!![i], props1.ptr)

                if (props1.deviceType == VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU) {
                    output.value = buffer!![i]
                    println("Selected device number ${i} - success")
                    break
                }

            }

            buffer?.let {
                nativeHeap.free(it)
                buffer = null
            }

            output.value
        }

        println("Vulkan physical device initialized")

        val props: VkPhysicalDeviceProperties by lazy {
            var output = alloc<VkPhysicalDeviceProperties>()
            vkGetPhysicalDeviceProperties(vk_pdevice, output.ptr)
            output
        }

        val vk_devftrs by lazy {
            var output = alloc<VkPhysicalDeviceFeatures>()
            vkGetPhysicalDeviceFeatures(vk_pdevice, output.ptr)
            output
        }

        val caps: VkSurfaceCapabilitiesKHR by lazy {
            var output = alloc<VkSurfaceCapabilitiesKHR>()
            val result = vkGetPhysicalDeviceSurfaceCapabilitiesKHR(vk_pdevice, vk_surface, output.ptr)
            if(result != VK_SUCCESS){
                throw Error("Failed to get surface capabilities")
            }
            output
        }

        val vk_extprops = memScoped {
            val output: ArrayList<String> = ArrayList()
            val count = alloc<UIntVar>()
            vkEnumerateDeviceExtensionProperties(vk_pdevice, null, count.ptr, null)
            val arr = allocArray<VkExtensionProperties>(count.value.toInt())
            vkEnumerateDeviceExtensionProperties(vk_pdevice, null, count.ptr, arr)
            for (i in 0 until count.value.toInt())
                output.add(arr[i].extensionName.toKString())
            output
        }

        val queueFamilies by lazy {
            var output: ArrayList<VkQueueFamilyProperties> = ArrayList()
            memScoped {
                val count: UIntVar = alloc()
                vkGetPhysicalDeviceQueueFamilyProperties(vk_pdevice, count.ptr, null)
                assert(count.value > 0u)

                val buffer = allocArray<VkQueueFamilyProperties>(count.value.toInt())
                vkGetPhysicalDeviceQueueFamilyProperties(vk_pdevice, count.ptr, buffer)

                for (i in 0 until count.value.toInt()) {
                    output.add(buffer[i])
                }

            }
            output
        }

        var foundGraphicsQueueFamily = false
        var foundPresentQueueFamily = false
        var graphicsQueueFamily = 0u
        var presentQueueFamily = 0u

        for (i in 0u until queueFamilies.size.toUInt()) {
            var presentSupport = alloc<VkBool32Var>();
            vkGetPhysicalDeviceSurfaceSupportKHR(vk_pdevice, i, vk_surface, presentSupport.ptr)

            if (
                queueFamilies[i.toInt()].queueCount.toInt() > 0
                &&
                (
                queueFamilies[i.toInt()].queueFlags.toInt()
                and
                VK_QUEUE_GRAPHICS_BIT.toInt()
                )
                > 0
                ) {

                graphicsQueueFamily = i
                foundGraphicsQueueFamily = true

                if (presentSupport.value == 1u) {
                    presentQueueFamily = i
                    foundPresentQueueFamily = true
                    break
                }
            }

            if (!foundPresentQueueFamily && presentSupport.value == 1u) {
                presentQueueFamily = i
                foundPresentQueueFamily = true
            }
        }

        if (foundGraphicsQueueFamily) {
            println("queue family #${graphicsQueueFamily} supports graphics")

            if (foundPresentQueueFamily) {
                println("queue family #${presentQueueFamily} supports presentation")
            } else {
                throw Error("could not find a valid queue family with present support")
            }
        } else {
            throw Error("could not find a valid queue family with graphics support")
        }

        var devFeats: VkPhysicalDeviceFeatures = vk_devftrs
        var devExts: ArrayList<String> = vk_extprops
        val queueCInfos: ArrayList<VkDeviceQueueCreateInfo> = ArrayList()

        //#5 create Vulcan logical device
        val vk_ldevice = memScoped {
            val ldevice: VkDeviceVar = alloc<VkDeviceVar>()
            val queuePriority = allocArrayOf(1.0f)

            val queueInfo = alloc<VkDeviceQueueCreateInfo>().apply {
                sType = VK_STRUCTURE_TYPE_DEVICE_QUEUE_CREATE_INFO
                queueCount = 1u
                pQueuePriorities = queuePriority
            }

            queueCInfos.add(queueInfo)

            if (!devExts.contains(VK_KHR_SWAPCHAIN_EXTENSION_NAME))
                devExts.add(VK_KHR_SWAPCHAIN_EXTENSION_NAME)

            var idx = 0
            val queueInfos = allocArray<VkDeviceQueueCreateInfo>(queueCInfos.size) {
                val info = queueCInfos[idx++]
                this.flags = info.flags
                this.sType = info.sType
                this.flags = info.flags
                this.pNext = info.pNext
                this.pQueuePriorities = info.pQueuePriorities
                this.queueCount = info.queueCount
                this.queueFamilyIndex = info.queueFamilyIndex
            }

            val dInfo = alloc<VkDeviceCreateInfo>().apply {
                sType = VK_STRUCTURE_TYPE_DEVICE_CREATE_INFO
                pNext = null
                queueCreateInfoCount = queueCInfos.size.toUInt()
                pQueueCreateInfos = queueInfos
                pEnabledFeatures = devFeats.ptr
                enabledLayerCount = 0U
            }

            if (devExts.size > 0) {
                dInfo.enabledExtensionCount = devExts.size.toUInt()
                dInfo.ppEnabledExtensionNames = devExts.toCStringArray(memScope)
            }

            var result = vkCreateDevice(vk_pdevice, dInfo.ptr, null, ldevice.ptr)

            if(result!=VK_SUCCESS) throw Error("Logical device failure")

            ldevice.value
        }

        println("Vulkan logical device initialized")


        val graphicsQueue = alloc<VkQueueVar>()
        val presentQueue = alloc<VkQueueVar>()

        vkGetDeviceQueue(vk_ldevice, graphicsQueueFamily.toUInt(), 0u, graphicsQueue.ptr)
        vkGetDeviceQueue(vk_ldevice, presentQueueFamily.toUInt(), 0u, presentQueue.ptr)

        println("Created graphicsQueue ${graphicsQueue.value.toLong().toString(16)}")
        println("Created presentQueue ${presentQueue.value.toLong().toString(16)}")

        var memoryProperties: VkPhysicalDeviceMemoryProperties = alloc()
        vkGetPhysicalDeviceMemoryProperties(vk_pdevice, memoryProperties.ptr)

        //#6 create Semaphores

        var imageAvailableSemaphore = alloc<VkSemaphoreVar>()
        var renderingFinishedSemaphore = alloc<VkSemaphoreVar>()

        memScoped {
            val semaphoreCreateInfo = alloc<VkSemaphoreCreateInfo>().apply {
                sType = VK_STRUCTURE_TYPE_SEMAPHORE_CREATE_INFO
                pNext = null
            }

            if (
                    (
                        vkCreateSemaphore(
                            vk_ldevice,
                            semaphoreCreateInfo.ptr,
                            null,
                            imageAvailableSemaphore.ptr
                        ) != VK_SUCCESS

                            ||

                        vkCreateSemaphore(
                            vk_ldevice,
                            semaphoreCreateInfo.ptr,
                            null,
                            renderingFinishedSemaphore.ptr
                        ) != VK_SUCCESS
                    )

            )
            throw  RuntimeException("Failed to create imageAvailableSemaphore or renderingFinishedSemaphore")
        }


        //#7 Create graphics command pool
        val commandPoolVar = alloc<VkCommandPoolVar>()

        val commandPoolCreateInfo = alloc<VkCommandPoolCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_COMMAND_POOL_CREATE_INFO
            queueFamilyIndex = graphicsQueueFamily.toUInt()
            flags = 0U
        }

        if ( vkCreateCommandPool(vk_ldevice, commandPoolCreateInfo.ptr, null, commandPoolVar.ptr) != VK_SUCCESS)
                throw RuntimeException("Failed to create command pool")

        println("Created command pool ${commandPoolVar.value.toLong().toString(16)}")

        //#8 Setup vertices buffers
        val vertexBuffer = floatArrayOf(
            -0.8f, -0.8f, 0.0f,
             0.8f, -0.8f, 0.0f,
             0.0f,  0.8f, 0.0f
        )

        var indexBuffer = uintArrayOf(0u,2u,1u)

        val vertexBufferSize = (vertexBuffer.size * sizeOf<FloatVar>()).toULong();
        var indexBufferSize = (indexBuffer.size * sizeOf<UIntVar>()).toULong()
        val indicesCount by lazy { indexBuffer.size }

        var vIBuffer = alloc<VkBufferVar>()
        var vIMemory = alloc<VkDeviceMemoryVar>()
        var vOBuffer = alloc<VkBufferVar>()
        var vOMemory = alloc<VkDeviceMemoryVar>()

        createBufferAndMemory(
            memScope,
            vIBuffer,
            vIMemory,
            vk_ldevice!!,
            vk_pdevice!!,
            vertexBufferSize,
            vOBuffer,
            vOMemory,
            vertexBuffer,
            VK_BUFFER_USAGE_VERTEX_BUFFER_BIT or VK_BUFFER_USAGE_TRANSFER_DST_BIT
        )

        var iIBuffer = alloc<VkBufferVar>()
        var iIMemory = alloc<VkDeviceMemoryVar>()
        var iOBuffer = alloc<VkBufferVar>()
        var iOMemory = alloc<VkDeviceMemoryVar>()

        createBufferAndMemory(
            memScope,
            iIBuffer,
            iIMemory,
            vk_ldevice,
            vk_pdevice,
            indexBufferSize,
            iOBuffer,
            iOMemory,
            indexBuffer,
            VK_BUFFER_USAGE_INDEX_BUFFER_BIT or VK_BUFFER_USAGE_TRANSFER_DST_BIT
        )

        val copyCmdBufInfo = alloc<VkCommandBufferAllocateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO
            commandPool = commandPoolVar.value
            level = VK_COMMAND_BUFFER_LEVEL_PRIMARY
            commandBufferCount = 1u
            pNext = null
        }

        var copyCommandBuffer = allocArray<VkCommandBufferVar>(1)

        if ( vkAllocateCommandBuffers(vk_ldevice, copyCmdBufInfo.ptr, copyCommandBuffer) != VK_SUCCESS)
            throw RuntimeException("Failed to create copy command buffer")

        val copyBeginBufInfo: VkCommandBufferBeginInfo = alloc<VkCommandBufferBeginInfo>().apply {
            sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO
            pNext = null
            flags = VK_COMMAND_BUFFER_USAGE_ONE_TIME_SUBMIT_BIT
        }

        if ( vkBeginCommandBuffer(copyCommandBuffer[0], copyBeginBufInfo.ptr) != VK_SUCCESS)
                throw RuntimeException("Failed to start begin command buffer")

        val copyRegion = alloc<VkBufferCopy>()

        copyRegion.size = vertexBufferSize.toULong()

        vkCmdCopyBuffer(
            copyCommandBuffer[0],
            vIBuffer.value,
            vOBuffer.value,
            1u,
            copyRegion.ptr
        )

        copyRegion.size = indexBufferSize.toULong()

        vkCmdCopyBuffer(
            copyCommandBuffer[0],
            iIBuffer.value,
            iOBuffer.value,
            1u,
            copyRegion.ptr
        )

        memScoped {

            val copyCommand = alloc<VkCommandBufferVar>()
            copyCommand.value = copyCommandBuffer[0]

            if (vkEndCommandBuffer(copyCommand.value) != VK_SUCCESS)
                throw RuntimeException("Failed to end copy command buffer")

            val submitInfo = alloc<VkSubmitInfo>().apply {
                sType = VK_STRUCTURE_TYPE_SUBMIT_INFO
                commandBufferCount = 1u
                pCommandBuffers = copyCommand.ptr
            }

            if (vkQueueSubmit(graphicsQueue.value, 1u, submitInfo.ptr, null)!=VK_SUCCESS)
                throw Error("Failed submit copy queue")

            vkQueueWaitIdle(graphicsQueue.value)

            vkFreeCommandBuffers(vk_ldevice, commandPoolVar.value, 1u, copyCommand.ptr)

            vkDestroyBuffer(vk_ldevice, vIBuffer.value, null)
            vkFreeMemory(vk_ldevice, vIMemory.value, null)

            vkDestroyBuffer(vk_ldevice, iIBuffer.value, null)
            vkFreeMemory(vk_ldevice, iIMemory.value, null)

        }


        //#10 Setup swap chain
        var swapChainExtent: VkExtent2D

        if (caps.currentExtent.width == (-1).toUInt()) {
            swapChainExtent = alloc<VkExtent2D>()
            swapChainExtent.width = 640u
            swapChainExtent.height = 480u
        } else {
            swapChainExtent = caps.currentExtent
        }

        println("""
        Device: ${props.deviceName.toKString()}
        Driver: ${ma(props.driverVersion)}.${mi(props.driverVersion)}.${pa(props.driverVersion)}
        Vulkan: ${ma(props.apiVersion)}.${mi(props.apiVersion)}.${pa(props.apiVersion)}
        GLFW Size: ${caps.currentExtent.width}x${caps.currentExtent.height}
        """)


        val formatsCount = alloc<UIntVar>()
        memScoped {
            var result: VkResult
            val modesCount = alloc<UIntVar>()
            var buffer1: CArrayPointer<VkPresentModeKHRVar>? = null

            do {
                result = vkGetPhysicalDeviceSurfacePresentModesKHR(vk_pdevice, vk_surface, modesCount.ptr, null)
                if ( result != VK_SUCCESS) {
                    throw RuntimeException("Could not get surface present modes.")
                }

                if (modesCount.value == 0u) break

                buffer1?.let {
                    nativeHeap.free(it)
                    buffer1 = null
                }

                buffer1 = nativeHeap.allocArray(modesCount.value.toInt())

                result = vkGetPhysicalDeviceSurfacePresentModesKHR(vk_pdevice, vk_surface, modesCount.ptr, buffer1)
                if (result != VK_SUCCESS) {
                    throw RuntimeException("Could not get surface present modes.")
                }
            } while (result == VK_INCOMPLETE)

            for (i in 0 until modesCount.value.toInt())
                modes.add(buffer1!![i])

            buffer1?.let {
                nativeHeap.free(it)
            }
        }

        var swapChainImages = ArrayList<VkImage>()
        var swapChainImageViews = ArrayList<VkImageView>()
        var swapChainFramebuffers = ArrayList<VkFramebuffer>()
        val swapChainImagesCount: UIntVar = alloc()

        val vk_swapchain = memScoped {
            println("display chosen for swapchain ${swapChainExtent.width}x${swapChainExtent.height}")
            val swapchain: VkSwapchainKHRVar = alloc()
            var result: VkResult
            var buffer: CArrayPointer<VkSurfaceFormatKHR>? = null

            do {
                result = vkGetPhysicalDeviceSurfaceFormatsKHR(vk_pdevice, vk_surface, formatsCount.ptr, null)
                if (result != VK_SUCCESS) {
                    throw Error("Surface formats failure!")
                }

                if (formatsCount.value == 0u) break

                buffer?.let {
                    nativeHeap.free(it)
                    buffer = null
                }

                buffer = nativeHeap.allocArray(formatsCount.value.toInt())
                result =
                    vkGetPhysicalDeviceSurfaceFormatsKHR(
                        vk_pdevice,
                        vk_surface,
                        formatsCount.ptr,
                        buffer!!.getPointer(memScope)
                    )
                if (result != VK_SUCCESS) {
                    throw Error("Surface formats failure!")
                }

            } while (result == VK_INCOMPLETE)

            if (formatsCount.value == 1u) {
                    swapChainFormat = buffer!![0].format
                    colorSpace = buffer!![0].colorSpace
                    println("only one formatsCount ${formatsCount.value}")
            } else {

                var chosenFormat: UInt? = null

                for (i in 0u until formatsCount.value) {
                    if (buffer!![i.toInt()].format == VK_FORMAT_R8G8B8A8_UNORM) {
                        chosenFormat = i
                        break
                    }
                }

                chosenFormat?.let {
                    swapChainFormat = buffer!![it.toInt()].format
                    colorSpace = buffer!![it.toInt()].colorSpace
                } ?: kotlin.run {
                    swapChainFormat = buffer!![0].format
                    colorSpace = buffer!![0].colorSpace
                }

            }

            nativeHeap.free(buffer!!)

            run mail@{
                modes.forEach {
                    if (it == VK_PRESENT_MODE_MAILBOX_KHR) {
                        presentetionMode = VK_PRESENT_MODE_MAILBOX_KHR
                        return@mail
                    }

                    if ((presentetionMode != VK_PRESENT_MODE_MAILBOX_KHR) && (it == VK_PRESENT_MODE_IMMEDIATE_KHR))
                        presentetionMode = VK_PRESENT_MODE_IMMEDIATE_KHR
                }
            }

            var imagesNeeded = caps.maxImageCount + 1u
            if ((caps.maxImageCount > 0u) && (imagesNeeded > caps.maxImageCount))
                imagesNeeded = caps.maxImageCount

            val surfaceTransform: VkSurfaceTransformFlagsKHR =
                if ((caps.supportedTransforms and VK_SURFACE_TRANSFORM_IDENTITY_BIT_KHR) > 0u)
                    VK_SURFACE_TRANSFORM_IDENTITY_BIT_KHR
                else
                    caps.currentTransform

            var compositeAlphaBit = VK_COMPOSITE_ALPHA_OPAQUE_BIT_KHR
            val compositeAlphaFlags = arrayOf(
                VK_COMPOSITE_ALPHA_OPAQUE_BIT_KHR,
                VK_COMPOSITE_ALPHA_PRE_MULTIPLIED_BIT_KHR,
                VK_COMPOSITE_ALPHA_POST_MULTIPLIED_BIT_KHR,
                VK_COMPOSITE_ALPHA_INHERIT_BIT_KHR
            )

            kotlin.run found@{
                compositeAlphaFlags.forEach {
                    if ((caps.supportedCompositeAlpha and it) > 0u) {
                        compositeAlphaBit = it
                        return@found
                    }
                }
            }

            val discardSwapchain = alloc<VkSwapchainKHRVar>()

            var swapchainCreateInfo: VkSwapchainCreateInfoKHR = alloc<VkSwapchainCreateInfoKHR>().apply {
                sType = VK_STRUCTURE_TYPE_SWAPCHAIN_CREATE_INFO_KHR
                pNext = null
                this.surface = vk_surface
                minImageCount = imagesNeeded
                imageFormat = swapChainFormat
                imageColorSpace = colorSpace
                imageExtent.width = swapChainExtent.width
                imageExtent.height = swapChainExtent.height
                imageUsage = VK_IMAGE_USAGE_COLOR_ATTACHMENT_BIT
                imageArrayLayers = 1u
                preTransform = surfaceTransform
                queueFamilyIndexCount = 0u
                pQueueFamilyIndices = null
                presentMode = presentetionMode
                oldSwapchain = discardSwapchain.value
                clipped = 1u
                compositeAlpha = compositeAlphaBit
            }

            swapchainCreateInfo.imageSharingMode = VK_SHARING_MODE_EXCLUSIVE

            if ((caps.supportedUsageFlags and VK_IMAGE_USAGE_TRANSFER_SRC_BIT) > 0u)
                swapchainCreateInfo.imageUsage = swapchainCreateInfo.imageUsage or VK_IMAGE_USAGE_TRANSFER_SRC_BIT

            if ((caps.supportedUsageFlags and VK_IMAGE_USAGE_TRANSFER_DST_BIT) > 0u)
                swapchainCreateInfo.imageUsage = swapchainCreateInfo.imageUsage or VK_IMAGE_USAGE_TRANSFER_DST_BIT

            if (vkCreateSwapchainKHR(vk_ldevice, swapchainCreateInfo.ptr, null, swapchain.ptr) != VK_SUCCESS)
                throw Error("Failed to create swapchain")

            println("Swap chain created successfully")

            if (discardSwapchain.value != null) {
                vkDestroySwapchainKHR(vk_ldevice, discardSwapchain.value, null)
            }

            if (vkGetSwapchainImagesKHR(vk_ldevice, swapchain.value, swapChainImagesCount.ptr, null) != VK_SUCCESS )
                throw RuntimeException("Failed to initialize vulkan. No images")

            var localImagesBuffer = allocArray<VkImageVar>(swapChainImagesCount.value.toInt())

            if ( vkGetSwapchainImagesKHR(vk_ldevice, swapchain.value, swapChainImagesCount.ptr, localImagesBuffer) != VK_SUCCESS)
                throw Error("No vulkan images")

            for (i in 0 until swapChainImagesCount.value.toInt()) {
                swapChainImages.add(localImagesBuffer[i]!!)
            }

            swapchain.value
        }

        println("Swap chain images count " + swapChainImages.size);

        //#11 Create Render pass
        val attachments = allocArray<VkAttachmentDescription>(1)

        attachments[0].apply {
            this.format = swapChainFormat
            this.finalLayout = VK_IMAGE_LAYOUT_PRESENT_SRC_KHR
            this.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED
            this.loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR
            this.samples = VK_SAMPLE_COUNT_1_BIT
            this.stencilLoadOp = VK_ATTACHMENT_LOAD_OP_DONT_CARE
            this.stencilStoreOp = VK_ATTACHMENT_STORE_OP_DONT_CARE
            this.storeOp = VK_ATTACHMENT_STORE_OP_STORE
        }

        val colorReference = alloc<VkAttachmentReference>()
        colorReference.attachment = 0u
        colorReference.layout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL

        val subpass = alloc<VkSubpassDescription>()
        subpass.pipelineBindPoint = VK_PIPELINE_BIND_POINT_GRAPHICS
        subpass.colorAttachmentCount = 1u;
        subpass.pColorAttachments = colorReference.ptr

        val dependencies = allocArray<VkSubpassDependency>(1).apply {
            this[0].srcSubpass = VK_SUBPASS_EXTERNAL
            this[0].dstSubpass = 0u
            this[0].srcStageMask = VK_PIPELINE_STAGE_BOTTOM_OF_PIPE_BIT
            this[0].dstStageMask = VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT
            this[0].srcAccessMask = VK_ACCESS_MEMORY_READ_BIT
            this[0].dstAccessMask = VK_ACCESS_COLOR_ATTACHMENT_READ_BIT or VK_ACCESS_COLOR_ATTACHMENT_WRITE_BIT
            this[0].dependencyFlags = VK_DEPENDENCY_BY_REGION_BIT
        }

        val renderPassInfo = alloc<VkRenderPassCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_RENDER_PASS_CREATE_INFO
            pNext = null
            pAttachments = attachments
            attachmentCount = 1u
            subpassCount = 1u
            pSubpasses = subpass.ptr
            dependencyCount = 1u
            pDependencies = dependencies
        }

        var renderPassRef = alloc<VkRenderPassVar>()

        if ( vkCreateRenderPass(vk_ldevice, renderPassInfo.ptr, null, renderPassRef.ptr) != VK_SUCCESS)
            throw RuntimeException("Failed to create Renderpass")

        println("after vkCreateRenderPass")


        //#12 Create Image Views
        memScoped {
            for (i in 0 until swapChainImagesCount.value.toInt()) {
                val imageViewCreateInfo: VkImageViewCreateInfo = alloc<VkImageViewCreateInfo>().apply {
                    sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO
                    viewType = VK_IMAGE_VIEW_TYPE_2D
                    format = swapChainFormat
                    components.r = VK_COMPONENT_SWIZZLE_IDENTITY
                    components.g = VK_COMPONENT_SWIZZLE_IDENTITY
                    components.b = VK_COMPONENT_SWIZZLE_IDENTITY
                    components.a = VK_COMPONENT_SWIZZLE_IDENTITY
                    subresourceRange.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT
                    subresourceRange.baseMipLevel = 0u
                    subresourceRange.levelCount = 1u
                    subresourceRange.baseArrayLayer = 0u
                    subresourceRange.layerCount = 1u
                    pNext = null
                    flags = 0u
                    image = swapChainImages[i]
                }

                val imageView = alloc<VkImageViewVar>()

                if (vkCreateImageView(vk_ldevice, imageViewCreateInfo.ptr, null, imageView.ptr) != VK_SUCCESS)
                    throw Error("image view(${i}) error!!")

                swapChainImageViews.add(imageView.value!!)
            }
        }

        println("Swap chain view count " + swapChainImageViews.size);

        //#13 Create Frame Buffers
        memScoped {

            for (i in 0 until swapChainImageViews.size) {
                val attachments1 = allocArray<VkImageViewVar>(1)
                attachments1[0] = swapChainImageViews[i]

                val frameBufferCreateInfo = alloc<VkFramebufferCreateInfo>().apply {
                    sType = VK_STRUCTURE_TYPE_FRAMEBUFFER_CREATE_INFO
                    renderPass = renderPassRef.value
                    attachmentCount = 1u
                    pAttachments = attachments1
                    width = swapChainExtent.width
                    height = swapChainExtent.height
                    layers = 1u
                }

                var framebuffer = alloc<VkFramebufferVar>()

                if (    vkCreateFramebuffer(
                                vk_ldevice,
                                frameBufferCreateInfo.ptr,
                                null,
                                framebuffer.ptr
                         ) != VK_SUCCESS)
                    throw Error("failed to create framebuffer(${i}) !");

                swapChainFramebuffers.add(framebuffer.value!!)

            }

            println("after vkCreateFramebuffer")
        }


        //#14 Create Graphics Pipeline

        val cwd = ByteArray(1024)
        cwd.usePinned {
            getcwd(it.addressOf(0), 1024)
        }

        var vertShaderModule = loadShader("${cwd.toKString()}\\shaders\\vert.spv", vk_ldevice)
        var fragShaderModule = loadShader("${cwd.toKString()}\\shaders\\frag.spv", vk_ldevice)

        val shaderStages = allocArray<VkPipelineShaderStageCreateInfo>(2)

        shaderStages[0].sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO
        shaderStages[0].stage = VK_SHADER_STAGE_VERTEX_BIT
        shaderStages[0].module = vertShaderModule
        shaderStages[0].pName = "main".cstr.ptr

        shaderStages[1].sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO
        shaderStages[1].stage = VK_SHADER_STAGE_FRAGMENT_BIT
        shaderStages[1].module = fragShaderModule
        shaderStages[1].pName = "main".cstr.ptr

        val vertexInputInfo = alloc<VkPipelineVertexInputStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO
            vertexBindingDescriptionCount = 0u
            pVertexBindingDescriptions = null
            vertexAttributeDescriptionCount = 0u
            pVertexAttributeDescriptions = null
        }

        val inputAssembly = alloc<VkPipelineInputAssemblyStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_INPUT_ASSEMBLY_STATE_CREATE_INFO
            topology = VK_PRIMITIVE_TOPOLOGY_TRIANGLE_LIST
            primitiveRestartEnable = VK_FALSE.toUInt()
        }

        val viewport1 = alloc<VkViewport>().apply {
            x = 0.0f
            y = 0.0f
            width = swapChainExtent.width.toFloat()
            height = swapChainExtent.height.toFloat()
            minDepth = 0f
            maxDepth = 1f
        }

        val scissor1 = alloc<VkRect2D>().apply {
            offset.x = 0
            offset.y = 0
            extent.width = swapChainExtent.width
            extent.height = swapChainExtent.height
        }

        val viewportState = alloc<VkPipelineViewportStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_VIEWPORT_STATE_CREATE_INFO
            viewportCount = 1u
            scissorCount = 1u
            pViewports = viewport1.ptr
            pScissors = scissor1.ptr
        }

        val rasterizer = alloc<VkPipelineRasterizationStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_RASTERIZATION_STATE_CREATE_INFO
            depthClampEnable = VK_FALSE.toUInt()
            rasterizerDiscardEnable = VK_FALSE.toUInt()
            polygonMode = VK_POLYGON_MODE_FILL
            cullMode = VK_CULL_MODE_BACK_BIT
            frontFace = VK_FRONT_FACE_COUNTER_CLOCKWISE
            depthBiasEnable = VK_FALSE.toUInt()
            lineWidth = 1.0f
        }

        val multisampling = alloc<VkPipelineMultisampleStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_MULTISAMPLE_STATE_CREATE_INFO
            rasterizationSamples = VK_SAMPLE_COUNT_1_BIT
            pSampleMask = null
            sampleShadingEnable = VK_FALSE.toUInt()
        }

        val blendAttachmentState = allocArray<VkPipelineColorBlendAttachmentState>(1)

        blendAttachmentState[0].apply {
            blendEnable = VK_FALSE.toUInt()
            srcColorBlendFactor = VK_BLEND_FACTOR_ONE
            dstColorBlendFactor = VK_BLEND_FACTOR_ZERO
            colorBlendOp = VK_BLEND_OP_ADD
            srcAlphaBlendFactor = VK_BLEND_FACTOR_ONE
            dstAlphaBlendFactor = VK_BLEND_FACTOR_ZERO
            alphaBlendOp = VK_BLEND_OP_ADD
            colorWriteMask = VK_COLOR_COMPONENT_R_BIT or VK_COLOR_COMPONENT_G_BIT or VK_COLOR_COMPONENT_B_BIT or VK_COLOR_COMPONENT_A_BIT
        }

        val colorBlending = alloc<VkPipelineColorBlendStateCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_COLOR_BLEND_STATE_CREATE_INFO
            attachmentCount = 1u
            pAttachments = blendAttachmentState
            logicOpEnable = VK_FALSE.toUInt()
            logicOp = VK_LOGIC_OP_COPY
            blendConstants[0] = 0.0f
            blendConstants[1] = 0.0f
            blendConstants[2] = 0.0f
            blendConstants[3] = 0.0f
        }

        val pipelineLayoutCreateInfo = alloc<VkPipelineLayoutCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO
            pNext = null
            setLayoutCount = 0u
            pSetLayouts = null
        }

        var pipelineLayout: VkPipelineLayoutVar = alloc()

        if (
                vkCreatePipelineLayout(
                    vk_ldevice,
                    pipelineLayoutCreateInfo.ptr,
                    null,
                    pipelineLayout.ptr
                )
            != VK_SUCCESS
        )
        throw Error("Pipeline layout failed!!")

        println("after vkCreatePipelineLayout")

        val pipelineCreateInfo = alloc<VkGraphicsPipelineCreateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_GRAPHICS_PIPELINE_CREATE_INFO
            stageCount = 2u
            pStages = shaderStages
            pVertexInputState = vertexInputInfo.ptr
            pInputAssemblyState = inputAssembly.ptr
            pViewportState = viewportState.ptr
            pRasterizationState = rasterizer.ptr
            pMultisampleState = multisampling.ptr
            pColorBlendState = colorBlending.ptr
            pDepthStencilState = null
            pDynamicState = null
            layout = pipelineLayout.value
            renderPass = renderPassRef.value
            basePipelineHandle = null
            basePipelineIndex = (-1).toInt()
        }

        var graphicsPipeline = alloc<VkPipelineVar>()

        if (
                vkCreateGraphicsPipelines(
                    vk_ldevice,
                    null,
                    1u,
                    pipelineCreateInfo.ptr,
                    null,
                    graphicsPipeline.ptr
                )
            != VK_SUCCESS
        )
        throw RuntimeException("failed create pipeline")

        vkDestroyShaderModule(vk_ldevice, shaderStages[0].module, null)
        vkDestroyShaderModule(vk_ldevice, shaderStages[1].module, null)

        println("Graphics pipeline created successfully")

        //#15 Create Descriptor Pool

        //IGNORED for this simple demo

        //#16 Create Descriptor Set

        //IGNORED for this simple demo

        //#17 Create Command Buffers

        var graphicsCommandBuffers = allocArray<VkCommandBufferVar>(swapChainImagesCount.value.toInt())

        val commandBufferAllocateInfo = alloc<VkCommandBufferAllocateInfo>().apply {
            sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO
            commandPool = commandPoolVar.value
            level = VK_COMMAND_BUFFER_LEVEL_PRIMARY
            commandBufferCount = swapChainImagesCount.value.toUInt()
        }
        println("before vkAllocateCommandBuffers")

        if ( vkAllocateCommandBuffers(vk_ldevice, commandBufferAllocateInfo.ptr, graphicsCommandBuffers) != VK_SUCCESS)
            throw RuntimeException("Failed to create graphicsCommandBuffers")

        val graphicsCmdBufferBeginInfo = alloc<VkCommandBufferBeginInfo>().apply {
            sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO
            flags = VK_COMMAND_BUFFER_USAGE_SIMULTANEOUS_USE_BIT
            pInheritanceInfo = null
        }

        val clearColor = allocArray<VkClearValue>(1)
        clearColor[0].color.float32.apply {
            this[0] = 0.0f
            this[1] = 0.0f
            this[2] = 0.2f
            this[3] = 1.0f
        }

        for (i in 0 until swapChainImages.size) {
            vkBeginCommandBuffer(graphicsCommandBuffers[i], graphicsCmdBufferBeginInfo.ptr)

            val renderPassBeginInfo = alloc<VkRenderPassBeginInfo>().apply {
                sType = VK_STRUCTURE_TYPE_RENDER_PASS_BEGIN_INFO
                pNext = null
                renderPass = renderPassRef.value
                renderArea.offset.x = 0
                renderArea.offset.y = 0
                renderArea.extent.width = swapChainExtent.width.toUInt()
                renderArea.extent.height = swapChainExtent.height.toUInt()
                clearValueCount = 1u
                pClearValues = clearColor
                framebuffer = swapChainFramebuffers[i]
            }

            vkCmdBeginRenderPass(graphicsCommandBuffers[i], renderPassBeginInfo.ptr,
            VK_SUBPASS_CONTENTS_INLINE)

            vkCmdBindPipeline(graphicsCommandBuffers[i], VK_PIPELINE_BIND_POINT_GRAPHICS,
            graphicsPipeline.value)

            val offset = allocArray<VkDeviceSizeVar>(1) { _: Int ->
                this.value = 0u
            }

            vkCmdBindVertexBuffers(graphicsCommandBuffers[i], 0u, 1u, vOBuffer.ptr, offset)

            vkCmdBindIndexBuffer(graphicsCommandBuffers[i], iOBuffer.value, 0u, VK_INDEX_TYPE_UINT32)

            vkCmdDrawIndexed(graphicsCommandBuffers[i], indicesCount.toUInt(), 1u, 0u, 0, 1u)

            vkCmdEndRenderPass(graphicsCommandBuffers[i])

            if (vkEndCommandBuffer(graphicsCommandBuffers[i]) != VK_SUCCESS) {
                throw Error("failed to record command buffer");
            }
        }
        println("recorded command buffers")
        vkDestroyPipelineLayout(vk_ldevice, pipelineLayout.value, null)


        //#18 Draw
        while (glfwGetKey(window, GLFW_KEY_ESCAPE) != GLFW_PRESS && glfwWindowShouldClose(window) == 0) {

            var imageIndex = alloc<UIntVar>()

            var res1 =  vkAcquireNextImageKHR(
                vk_ldevice,
                vk_swapchain,
                UINT64_MAX,
                imageAvailableSemaphore.value,
                null,
                imageIndex.ptr
            )

            if(res1 != VK_SUCCESS) {
                throw Error("failed to acquire image")
            }

            var drawSubmitInfo = alloc<VkSubmitInfo>()
            drawSubmitInfo.sType = VK_STRUCTURE_TYPE_SUBMIT_INFO

            drawSubmitInfo.waitSemaphoreCount = 1u
            drawSubmitInfo.pWaitSemaphores = imageAvailableSemaphore.ptr

            drawSubmitInfo.signalSemaphoreCount = 1u
            drawSubmitInfo.pSignalSemaphores = renderingFinishedSemaphore.ptr

            val drawStageWaitFlags = alloc<VkPipelineStageFlagsVar>()
            drawStageWaitFlags.value = VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT

            drawSubmitInfo.pWaitDstStageMask = drawStageWaitFlags.ptr

            var graphicsCmdBuffer = alloc<VkCommandBufferVar>()
            graphicsCmdBuffer.value = graphicsCommandBuffers[imageIndex.value.toInt()]

            drawSubmitInfo.commandBufferCount = 1u
            drawSubmitInfo.pCommandBuffers = graphicsCmdBuffer.ptr

            if (vkQueueSubmit(graphicsQueue.value, 1u, drawSubmitInfo.ptr, null) != VK_SUCCESS) {
                throw Error("failed to submit draw command buffer")
            }

            var drawPresentInfo = alloc<VkPresentInfoKHR>()
            drawPresentInfo.sType = VK_STRUCTURE_TYPE_PRESENT_INFO_KHR
            drawPresentInfo.waitSemaphoreCount = 1u
            drawPresentInfo.pWaitSemaphores = renderingFinishedSemaphore.ptr

            val swapChains = allocArray<VkSwapchainKHRVar>(1.toInt()) {
                this.value = vk_swapchain
            }

            drawPresentInfo.swapchainCount = 1u
            drawPresentInfo.pSwapchains = swapChains
            drawPresentInfo.pImageIndices = imageIndex.ptr;

            if (vkQueuePresentKHR(presentQueue.value, drawPresentInfo.ptr) != VK_SUCCESS) {
                throw Error("failed to submit present command buffer")
            }

            glfwSwapBuffers(window)
            glfwPollEvents()
        }

        if (commandPoolVar.value != null)
            vkDestroyCommandPool(vk_ldevice, commandPoolVar.value, null)

            vkDestroyDevice(vk_ldevice, null)

        if (callback.value != null) {
            println("Destroying callback")
            var kvkDestroyDebugReportCallbackEXT: PFN_vkDestroyDebugReportCallbackEXT? = null

            vkGetInstanceProcAddr(vk_instance, "vkDestroyDebugReportCallbackEXT")?.let { voidFun ->
                @Suppress("UNCHECKED_CAST")
                kvkDestroyDebugReportCallbackEXT = voidFun as PFN_vkDestroyDebugReportCallbackEXT
            }

            kvkDestroyDebugReportCallbackEXT?.let {
                it(vk_instance, callback.value, null)
            }
        }

        vkDestroyInstance(vk_instance, null)

        glfwTerminate()
}



For GLEW refer this code kotlin opengl glsl

For Pango+Cairo refer this code opengl svg pango cairo

For GLAD refer this code kotlin glad opengl glsl

For Chipmunk 2D game physics refer this code kotlin svg chipmunk

For FreeGLUT refer this code freeglut freetype2 opengl kotlin



Add new comment
